DC Fast EV Charger CSD R2
60kW–360kW DC Fast EV Charger | Dual Connector High-Power Charging Station for Commercial Use
Ultra-Fast DC Charging
Dual Connector Support
User-Friendly Touch Interface
Smart Connectivity & Protocols
High-Accuracy Energy Metering
Durable Outdoor Design
Certified & Compliant
Wide Environmental Tolerance
| Category | Item | Specification |
|---|---|---|
| power input | Input Type | 3-phase |
| Input Wiring Scheme | 3P+N+PE | |
| Rated Voltage | 400VAC±15% | |
| Max. THDI | 5% | |
| Min. Power Factor | 98% | |
| Grid Frequency | 50Hz or 60Hz | |
| Power output | Output voltage | 150∼1000VDC |
| Maximum Current | 200A / 250A / 300A | |
| Rated Power | 60–360kW | |
| User interface | Charge Connector | CCS2 / CCS1 / GB/T / CHAdeMO |
| No. of connector | 2 | |
| Cable length | 5m or Optional | |
| LED indicator | Green / Blue / Red, Progress Indicator | |
| LCD display | 7″ Touch Color Screen | |
| RFID Reader | ISO/IEC 14443 RFID Card | |
| User interface | Backend | Standard: Ethernet / 4G |
| Charging protocol | OCPP 1.6J | |
| Safety and certification | Energy Metering | Meter with 1% Accuracy |
| Ingress Protection | IP54 | |
| Impact Protection | IK10 | |
| Cooling method | Fan cooling | |
| Electrical Protection | Over/Under Voltage Protection, Over Current Protection, Short Circuit Protection, Over/Under Temperature |
|
| Electrical Protection (cont.) | Lightning Protection, Ground Protection |
|
| Certification | CE, RoHS | |
| Certification and conformity | IEC 61851-1, IEC 62196-1/-2 | |
| Environment | Mounting | Floor standing |
| Storage Temperature | -40°C∼+75°C | |
| Operating Temperature | -30°C∼+50°C | |
| Max Operating Humidity | 95%, non-condensing | |
| Max Operating Altitude | 2000m | |
| Mechanical | Product dimension | 750×600×1800 mm |
| Package Dimension | 117×82×198 cm / 295 kg 120×90×65 cm / 85 kg |
|
| Accesory | N/A |
The CSD-R2 is a high-power DC fast charging station engineered for commercial, fleet, and public EV infrastructure. Delivering an output range from 60kW to 360kW, and supporting up to 300A and 1000V, this charger ensures rapid, efficient charging for all modern EVs, including heavy-duty vehicles.
Equipped with dual charging connectors (CCS2, CCS1, GBT, or CHAdeMO optional), a 7-inch touchscreen, RFID reader, LED indicators, and real-time energy metering (±1% accuracy), it combines performance with user convenience and billing transparency.
The CSD-R2 supports OCPP 1.6J protocol and offers Ethernet or 4G connectivity for remote monitoring and backend management. IP54 and IK10-rated for outdoor use, with robust fan cooling, this unit is ideal for highways, commercial parking lots, urban charging hubs, and fleet depots seeking high-capacity, future-proof EV charging solutions.
-
Ultra-Fast DC Charging
Offers adjustable output power from 60kW up to 360kW, supporting 150–1000V DC and up to 300A output current for rapid charging.
-
Dual Connector Support
Configurable with 2 connectors (CCS2/CCS1/GBT/CHAdeMO), allowing simultaneous charging of two EVs and wide compatibility.
-
User-Friendly Touch Interface
7-inch touchscreen with intuitive UI, progress LEDs, and ISO/IEC 14443 RFID card reader for secure user access.
-
Smart Connectivity & Protocols
Supports OCPP 1.6J and remote management via Ethernet or 4G, ensuring integration with any backend management system.
-
High-Accuracy Energy Metering
Built-in smart meter (±1% accuracy) enables precise billing and energy usage tracking for operators.
-
Durable Outdoor Design
IP54-rated, IK10 impact-resistant enclosure with fan cooling ensures safe and stable operation in harsh outdoor environments.
-
Certified & Compliant
Meets CE, RoHS, IEC61851-1, and IEC62196-1/2 standards for global deployments.
-
Wide Environmental Tolerance
Operates reliably in extreme temperatures from -30°C to +50°C and up to 2000m altitude.

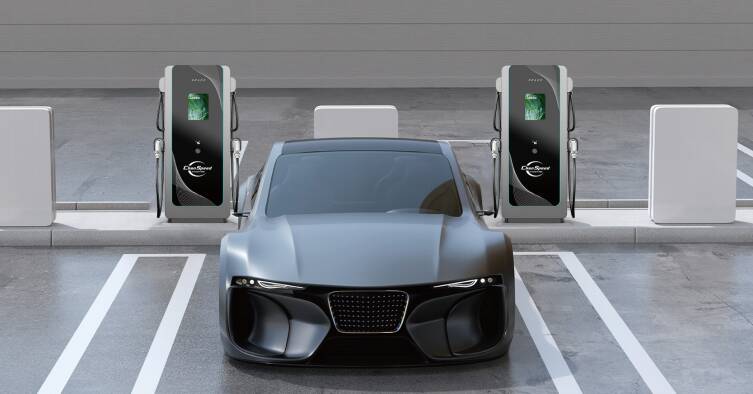

The CSD-R2 is ideal for a variety of demanding EV charging scenarios, including:
-
Highway Fast Charging Stations
Deliver ultra-fast charging for long-distance travelers and commercial EVs at service areas and roadside stations.
-
Urban Charging Hubs
Supports growing EV adoption in cities with scalable, space-efficient fast charging infrastructure.
-
Commercial Parking Facilities
Enhances value in shopping malls, business parks, and hotels by offering premium EV charging services.
-
Fleet Charging Depots
Perfect for electric taxis, buses, trucks, and delivery fleets needing fast turnaround and dual-vehicle charging.
-
EV Showrooms & Service Centers
Provides test-drive vehicle charging and service bay support with advanced display and billing capability.
-
Smart Energy Projects
Compatible with renewable energy sources and load management systems for sustainable charging solutions.
